The Simplicity 6630 Wood Panel is an alcove bathtub, designed with a wood skirt for tiling. Acritec alcove bathtubs are constructed of a high quality cast acrylic sheet that has a uniform composition and color throughout. The acrylic is fully supported by several layers of fiberglass and in several key stress areas, additional wooden support panels. Each bathtub has leveling legs to help level the bathtub for installation on uneven surfaces and is engineered to be self-supporting. Incorporate Air and Water Jet Systems to create a complete whirlpool bath. This bath creates a clean stylish pool of relaxation, ideal for quiet contemplation.
Simplicity 6630 Wood Panel | Alcove Bathtubs & Whirlpools
Left Hand: 41404.02010 | Right Hand: 41405.02010
Size
65 ⅞″ x 30″ x 22″ | Immersion Depth: 16″
Features
- 100% Acrylic with fiberglass & wood reinforcement
- Available in both left hand & right hand
- Factory installed integral wood apron for tile application.
- Above floor rough-in compatibility
- Integral tiling flange
- Leveling feet included
- 1 Year limited manufacturer’s warranty included
This product is available with jetting options. See details tabs below for more info.
Downloads
Dimensions | 65.875 × 30 × 22 in |
---|---|
color | white |
style | Wood skirt with single tiling flange |
configuration | available with either left end drain (41404.02010-LH) or right end drain (41405.02010-RH) |

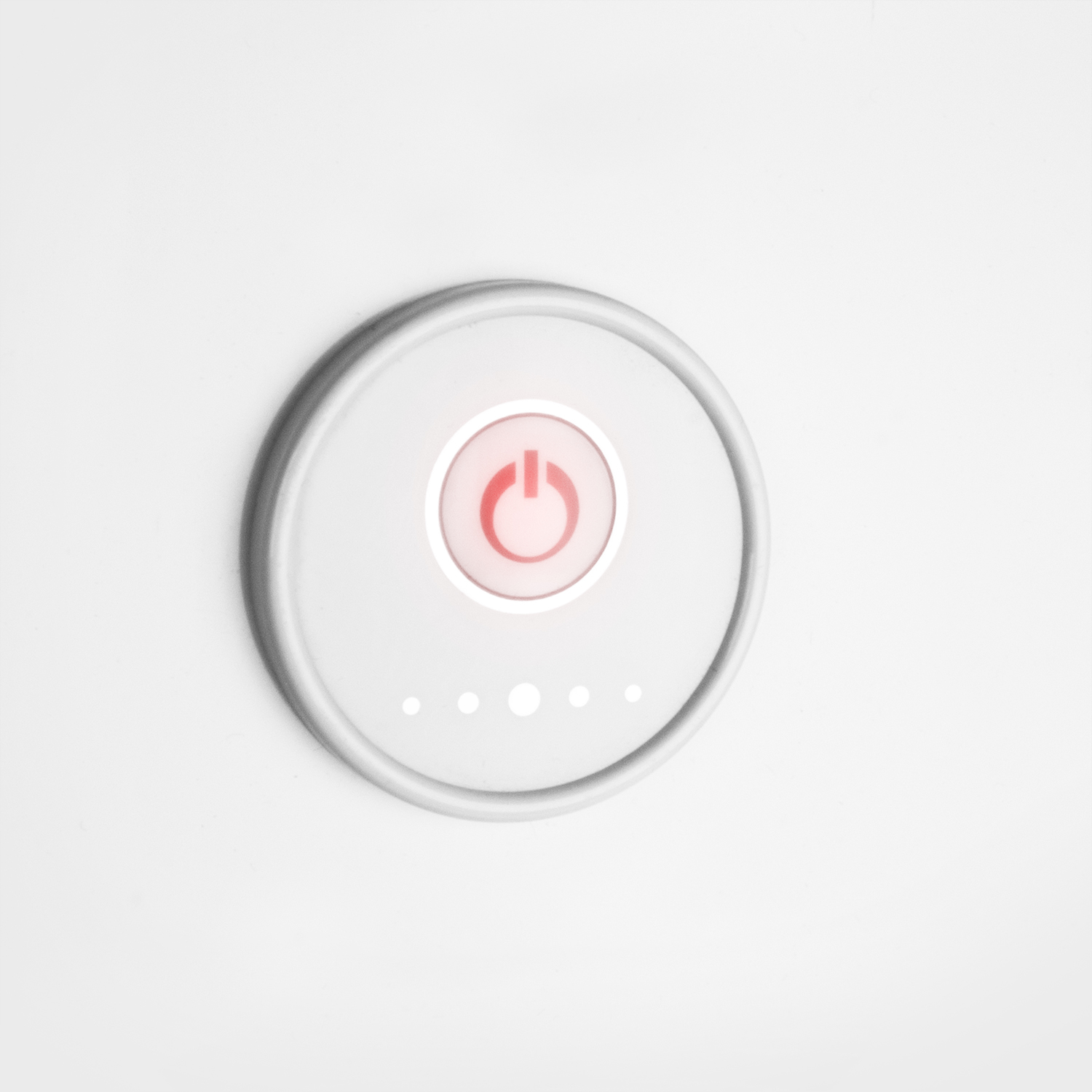

- Add Comfort Warm Heated Backrest | Part# 01040
- Add Chromatherapy Light | Part# 01020(White), 01021(Chrome)
- Option I: Add VIBE I (Advanced Keypad) + Chromatherapy Light | Part# 01022(White), 01023(Chrome)
Option II: Add VIBE II (Remote Control) + Chromatherapy Light | Part# 01024(White), 01025(Chrome) - Add Aromatherapy (Diffuser System) | Part# 01030
Sixteen lateral air jets, variable speed blower with a deck mounted touch sensor control pad. Requires a 15 amp GFI breaker.
Add Lateral Air
- White | Part# 00021
- Chrome | Part# 00024
- Brushed Nickel | 00023
Lateral water jets, 3/4 hp pump, 110v air switch on/off, air turbulence control. Requires a 15 amp GFI breaker.
6 Jet HydroMassage System
- White | Part# 00101
- Chrome | Part# 00104
8 Jet HydroMassage System
- White | Part# 00111
- Chrome | Part# 00114
Add Inline Whirlpool Heater | Part# 00171
